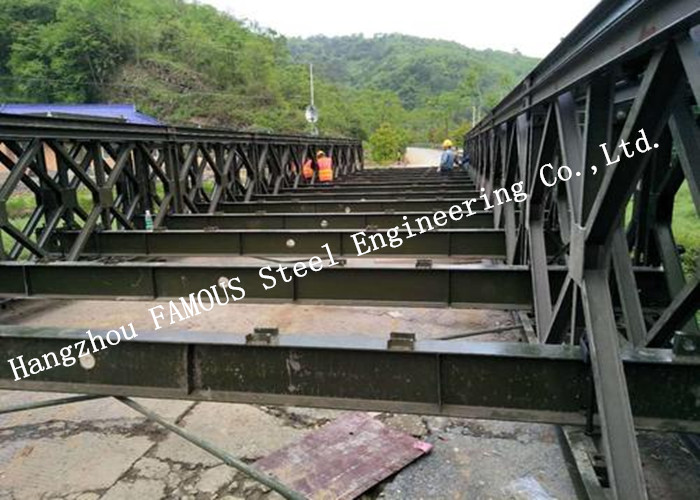

    200 Type Permanent Galvanized Surface Treatment Steel Bailey Bridge Double Rows Bridge

    Ask Lasest Price
    Brand Name : FAMOUS
    Model Number : 200-type
    Certification : ISO9001
    Price : USD1000~USD1200 per ton
    Payment Terms : L/C, T/T, D/A, D/P, Western Union
    Supply Ability : 600,000 tons per Year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    200 Type Permanent Galvanized Surface Treatment Steel Bailey Bridge Double Rows Bridge

    200 Type Permanent Galvanized Surface Treatment Steel Bailey Bridge Double Rows Bridge

    Description

    The Bailey bridge is a type of portable, pre-fabricated, truss bridge. It was developed by the British during World War II for military use and saw extensive use by British, Canadian and US military engineering units.


    Bailey Bridge (Panel Bridge) is a standard bridge equipment, adopted extensively and the most popular in the world, possessing the features of simple structure, convenient transport, speedy erection and easy disassembling, while having the advantage of heavy loading capacity, great stability and long fatigue life being capable of an alternative span, loading capacity and mixture form to erect all kinds of Temporary Bridges, Emergency Bridges and Fixed Bridges. Using the bridge equipment, the suspension bridges of varied span can be erected. The bridge has the advantages of few components, light weight and low cost. Bailey bridge is similarly like compact 100,compact 200 International bridge. it is assembled by each 3m panel, and invented by Donald Bailey. Its suitable load design is such like HS-15, HS-20, HS-25 and pedrail-50 etc.


    Specification

    Product NameGalvainzed Bailey Bridges
    Width4.6meter
    Maximum span64meter single span
    Bridge deckSteel composit panel
    Steel gradeQ345B
    Loading capacity20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
    CorrosionHot dip galvanized
    AdvantagesPrice effective and technical full analysis and supports

    Application:

    Spans from 3.6m to 31m and more - for highways, railways, pathways, bicycle racks, landscaping, etc

    Standardized designs - as per Indian BIS a. RC standards and codes

    Heavy live loads with high overfills - capable of supporting heavy freighter aircraft and mining haulers

    Smooth approaches - from earth embankments due to soil overfill, does not require any approach slab

    Low life cycle costs - traffic runs on overfill and not over an exposed bridge deck

    Aesthetic structures - the true arch form is accentuated.


    Advantages:

    Long-term corrosion protection

    High level of mechanical resilience

    Perfect all-round protection also in cavities and edges

    Cathodic corrosion protection

    Attractive appearance

    Very economical

    Maintenance free

    Good Eco-balance, environmentally-friendly process


    Stress characteristics
    (1) The piers and columns are rigidly connected, and the beams are unloaded due to the bending resistance of the piers. The whole system is a compression-bending structure and also has a thrust structure.
    (2) The clearance under the bridge of the steel truss bridge is larger than that of the arch bridge, and a smaller span can be constructed under the same clearance requirements.
    (3) The construction of steel truss bridges is more complicated, and is generally used for overpass bridges and overpasses in cities or highways with small spans.
    (4) Steel truss bridges constructed with prestressed concrete and cantilever construction have become one of the competition schemes for long-span bridges.


    Our company

    Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.



    Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.


    From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.


    Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

    Warmly welcome all friends and clients from International market to visit us!
