    Flexible Design Prefabricated Steel Structure Aircraft Hangar Buildings Seismic Proof Construction

    Flexible Design Prefabricated Steel Structure Aircraft Hangar Buildings Seismic Proof Construction

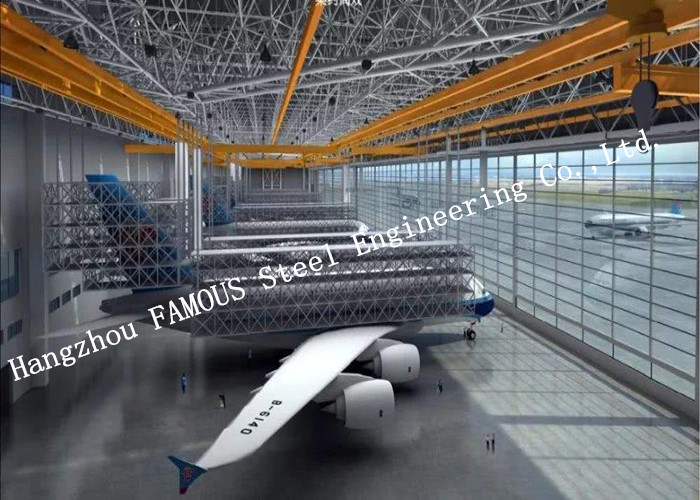

    Steel structure aircraft hangar has features of high fire resistance, strong corrosion resistance. Steel structure warehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect.


    The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich is polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant. The wall of the steel structure maintenance also can use brick wall. The cost of a brick wall is higher than galvanized steel roof and wall.


    The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage


    Specifications:

    Main frame steelSteel Welded H Section or hot rolled H section
    PurlinC or Z Section Channel for roof and wall
    Cladding systemSandwich Panel or Corrugated Steel Sheet with Fiber Glass Wool for wall and roof
    Tie RodCircular Steel Tube
    BraceRound Bar
    Column & TransverseAngle Steel or H Section Steel or Steel Pipe
    Knee BraceAngle Steel
    Roof GutterColor Steel Sheet
    RainspoutPVC Pipe
    DoorSliding Sandwich Panel Door or Metal Door
    WindowsPVC/Plastic Steel/Aluminum Alloy Window
    ConnectingHigh Strength Bolts
    Main steel materialQ345, Q235, Q345B, Q235B,Q355 etc
    PackingDecided by you , loaded into 1X 40ft GP,1X20 ft GP,1X40 ft HQ
    DrawingWe can make the design and quotation according to your require or you
    CraneDecided by you

    Quality standard

    1.Certificate: ISO9001:2000
    2.Code for design of steel structure: GB 50017-2003
    3.Technical code of cold-formed thin-wall steel structure: GB50018-2002
    4.Load code for the design of building structures. GB 50009-2006
    5.Construction quality acceptance of steel: GB50205-2001
    6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011
    7.Technical specification for welding of steel structure building: JGJ 81-2002
    8.Technical specification for steel Structures of tall buildings: (JGJ99-98)


    Advantage:

    1.Cost saving and transportation convenient, custom design available
    2.The main beam and column are made of quality steel.
    3.Steel structure makes the house resist heavy wind of 220km/h and 8-grade earthquake.
    4.Easy assembly and disassembly several times without damage.
    5.Good environmental protection effect. Steel structure housing construction greatly reduces sand, stone and dosage of the ash. Most of the used materials are recyclable or degradable, little rubbish produced.
    6.Continuous welding on both sides of each pieces;
    7.Mark every beam on the bottom plate for being saw after being galvanized;
    8.Send pictures to the buyer by mail during products being processed and loaded in container;


    FEATURES:
    1. Waterproof. Tent roof is covered with waterproof PVC fabric.
    2. Flame retardant. The tent tarp would help to slow the fire from spreading.
    3. Sun-blocking. 850g/sqm PVC tarp with insulation layer would help to block sunlight.
    4. Wind withstand. Tent structures from us can withstand wind at the speed from 80-120 km/h.
    Our company specializes in the design, production and construction of various single-floor and multi-floor steel structures, All kinds of iron and steel processing products, integrated mobile homes.
