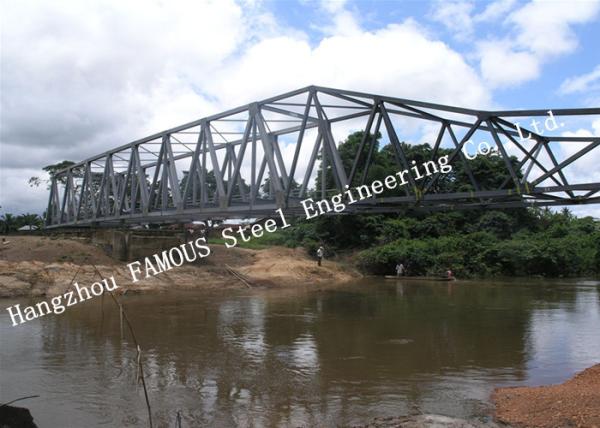

    Continental Prefabricated Steel Truss Pedestrian Bridge With Concrete Deck High Stiffness

    Ask Lasest Price
    Brand Name : FAMOUS
    Model Number : CB100(321-Type)&HD200
    Certification : ISO9001
    Price : USD1000~USD1200 per ton
    Payment Terms : L/C, T/T, D/A, D/P, Western Union
    Supply Ability : 10000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Continental Prefabricated Steel Truss Pedestrian Bridge With Concrete Deck High Stiffness

    Prefabricated Delta Assembly Modular Steel Bridge With Concrete Deck High Stiffness Steel Truss Bridge

    Description

    A steel truss bridge is a structural system between a beam and an arch. It is a structure in which a bent upper beam structure and a lower pressure column are integrally combined. Due to the rigid connection of the beam and the column, the beam is unloaded due to the bending stiffness of the column. The whole system is a bent structure and a thrust structure.


    Specification

    Product NameSpecification of Compact 100 &200 Bailey bridge
    Width7.3meter
    Maximum span64meter single span and 200meter multi span
    Bridge deckSteel composit panel
    Steel gradeQ345B (equivalent to ASTM A572)
    Loading capacity20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
    CorrosionHot dip galvanized
    AdvantagesPrice effective and technical full analysis and supports

    Steel Truss Bridge is a kind of Assembly Bridge down supporting, mainly used for medium spans. The bridge deck is concrete used as permanent bridge. The surface protection can be paint or hot-dip galvanized. Bridge load capacity, width can be designed according to user's requirements.


    Application

    Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of types dependent upon your specific bridge requirements.

    Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of various bridges are as follows:

    Spans from 3.6m to 31m and more - for highways, railways, pathways, bicycle racks, landscaping, etc

    Standardized designs - as per Indian BIS a. RC standards and codes

    Heavy live loads with high overfills - capable of supporting heavy freighter aircraft and mining haulers

    Smooth approaches - from earth embankments due to soil overfill, does not require any approach slab

    Low life cycle costs - traffic runs on overfill and not over an exposed bridge deck

    Aesthetic structures - the true arch form is accentuated.


    Features and Benefits
    Modular, pre-engineered, pre-fabricated bridge system
    Standard interchangeable components
    Highly adaptable, fully reusable and re-locatable
    Transported in standard ISO containers
    Quick and simple to build using labour
    Fully galvanized for long life and minimum maintenance
    3.048m module length
    4.2m single lane
    Proprietary steel decking systems to suit different loading requirements
    Durbar finish or factory applied anti-skid surfacing
    Full highway load carrying capability
    Simple, cost effective foundations


    Our Experience

    Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.



    Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.


    From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.


    Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

    Warmly welcome all friends and clients from International market to visit us!
