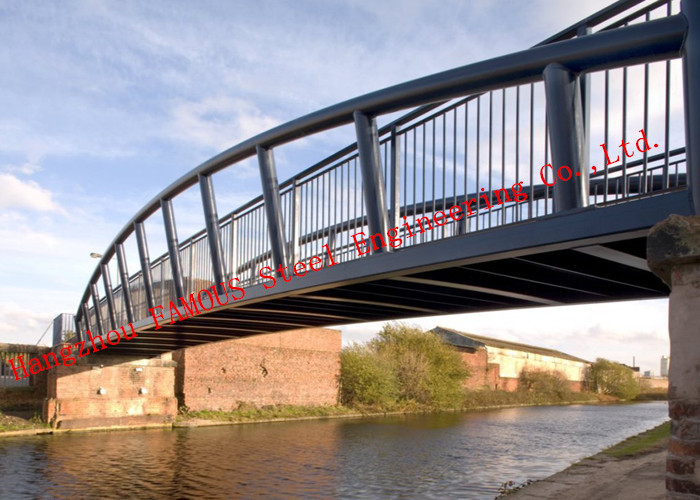

    Walking Steel Truss Bridge , Pedestrian Prefabricated Steel Bridges Simple Structure

    Ask Lasest Price
    Brand Name : FAMOUS
    Model Number : CB100(321-Type)&HD200
    Certification : ISO9001
    Price : USD1000~USD1200 per ton
    Payment Terms : L/C, T/T, D/A, D/P, Western Union
    Supply Ability : 10000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Walking Steel Truss Bridge , Pedestrian Prefabricated Steel Bridges Simple Structure

    New Design Prefabricated Delta Modular Steel Bridge Simple Structure Truss Supporting For performance

    Description

    Steel Truss Bridge is a kind of Assembly Bridge down supporting, mainly used for medium spans. The bridge deck is concrete used as permanent bridge. The surface protection can be paint or hot-dip galvanized. Bridge load capacity, width can be designed according to user's requirements.


    Specification

    Product Name
    Specification of Compact 100 &200 Bailey bridge
    Width
    7.3meter
    Maximum span
    64meter single span and 200meter multi span
    Bridge deck
    Steel composit panel
    Steel grade
    Q345B (equivalent to ASTM A572)
    Loading capacity
    20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
    Corrosion
    Hot dip galvanized
    Advantages
    Price effective and technical full analysis and supports

    Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, Bailey bridges can be built to match a wide range of vehicular bridging applications. Because of their excellent versatility and overall value, thousands of Bailey bridges have been installed throughout the world.


    Application

    Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of types dependent upon your specific bridge requirements.

    Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of various bridges are as follows:


    · Road Bridges

    · Pedestrian Bridges

    · Railway Bridges

    · Steel Truss Bridge

    · Beam Bridges

    · Steel Bailey bridge

    · Structural Steel Box Bridge

    · Highway Bridges

    · Composite Beam Bridge

    · Cable-Stayed Bridge

    · Floating Bridge etc.


    Features and Benefits
    Standard highway loads and greater
    Single and multiple lanes
    Easy installation, even in rugged terrain
    Shorter road closure times
    No waiting for concrete to cure
    Bearing plates and pads Curb or rail system


    Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.



    Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.


    From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.


    Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

    Warmly welcome all friends and clients from International market to visit us!
