    Highway Railway Wire Suspension Bridge , Arch Suspension Bridge Modular Frames Dual Purpose

    Ask Lasest Price
    Brand Name : FAMOUS
    Model Number : CB100(321-Type)&HD200
    Certification : ISO9001
    Price : USD1000~USD1200 per ton
    Payment Terms : L/C, T/T, D/A, D/P, Western Union
    Supply Ability : 10000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Highway Railway Wire Suspension Bridge , Arch Suspension Bridge Modular Frames Dual Purpose

    Dual Purpose Structural Arch Bridge Modular Frames Suspension Bridge For Highway And Railway Bridge

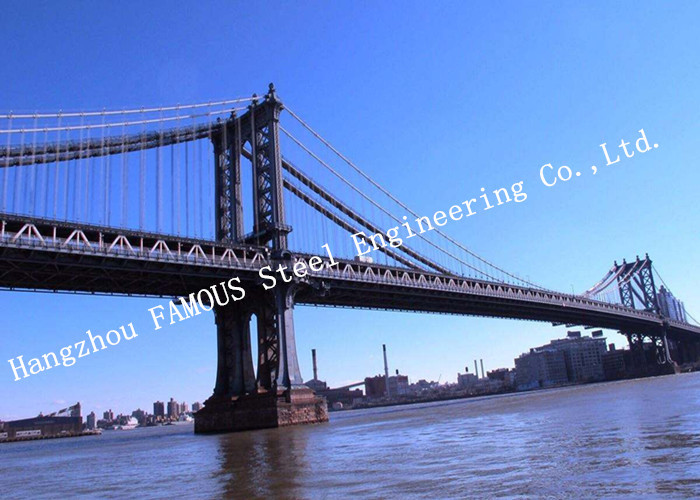

    Description of Steel Suspension Bridge

    A suspension bridge is a type of bridge in which the deck (the load-bearing portion) is hung below suspension cables on vertical suspenders. The first modern examples of this type of bridge were built in the early 1800s.[3][4] Simple suspension bridges, which lack vertical suspenders, have a long history in many mountainous parts of the world.

    This type of bridge has cables suspended between towers, plus vertical suspender cables that carry the weight of the deck below, upon which traffic crosses. This arrangement allows the deck to be level or to arc upward for additional clearance. Like other suspension bridge types, this type often is constructed without falsework.


    Specification of Steel Suspension Bridge

    Product NameSpecification of Compact 200-type Bailey bridge
    Width7.6m
    Maximum span64meter single span
    Bridge deckSteel composit panel
    Steel gradeQ345B
    Loading capacity20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
    CorrosionOriginal painted or Hot dip galvanized
    AdvantagesPrice effective and technical full analysis and supports

    Suspension Bailey Bridge is a kind of suspended-cable-system bridge,in which the steel decks are used as members,can be exerted the steel characteristic of high tensile totally in a big span,mainly used to span the wide river,bay and canyon,possessing the advantages of quick erection,short construction time and the bridge components can be used repeatedly


    Application

    Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of

    types dependent upon your specific bridge requirements. Our services include the complete complete bridge design and construction as per

    Client's choice of bridge features, and the scope of various bridges are as follows:

    · Road Bridges

    · Pedestrian Bridges

    · Railway Bridges

    · Steel Truss Bridge

    · Beam Bridges

    · Steel Bailey bridge

    · Structural Steel Box Bridge

    · Highway Bridges

    · Composite Beam Bridge

    · Cable-Stayed Bridge

    · Floating Bridge etc.


    Features and Benefits
    Modern versions of classic “Bailey Bridge” design
    Quick ship and install
    Permanent or temporary application
    Excellent detour bridge solution
    Short-term or long-term rental options
    Able to cantilever-launch from one side
    Optional internal or cantilevered sidewalk


    Competitive Advantage
    A Bailey bridge had the advantages of requiring no special tools or heavy equipment to assemble. The wood and steel bridge elements were

    small and light enough to be carried in trucks and lifted into place by hand, without requiring the use of a crane. The bridges were strong

    enough to carry tanks. Bailey bridges continue to be extensively used in civil engineering construction projects and to provide temporary

    crossings for foot and vehicle traffic.


    Highway Railway Wire Suspension Bridge , Arch Suspension Bridge Modular Frames Dual Purpose


    Highway Railway Wire Suspension Bridge , Arch Suspension Bridge Modular Frames Dual Purpose


    Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.


    From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.


    Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

    Warmly welcome all friends and clients from International market to visit us!
